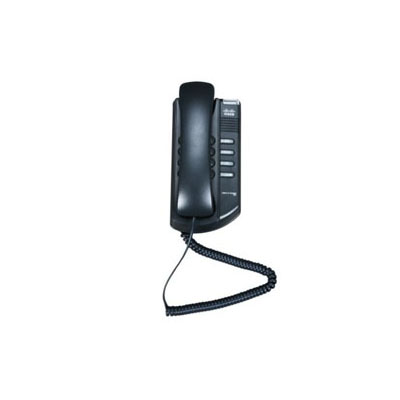

Cisco SPA-301-G1

•Small, affordable, single line business class IP Phone.
•Connect directly to an Internet telephone service provider or connect to an IP PBX
•Wall mount or table top phone
•Easy installation with secure remote provisioning. Menu based and web based configuration.
•Supports both SIP and Smart Phone Control Protocol (SPCP) with the Cisco®
Unified Communications 500 Series
Cisco SPA301 Package Contents:
•SPA301 IP Phone and Handset
•Handset Cord
•North American Power Supply
•RJ45 Ethernet Cable

Telephony Features

• One voice line

• Music on hold*

• Call waiting

• Outbound caller ID blocking**

• Call transfer: attended and blind** ( SIP Only )

• Three-way call conferencing with local mixing

• Multiparty conferencing via external conference bridge

• Automatic redial of last calling and last called numbers

• Call pickup: selective and group*

• Call swap

• Call back on busy**

• Call blocking: anonymous and selective**

• Call forwarding: unconditional, no answer, and on busy**

• Hot line and warm line automatic calling

• Digits dialed with number auto-completion

• Anonymous caller blocking**

• Support for Uniform Resource Identifier (URI) (IP) dialing (vanity numbers)

• Multiple ring tones with selectable ring tone per line

• Call duration and start time stored in call logs in web GUI

• Distinctive ringing based on calling and called number

• 10 user-downloadable ring tones

• Speed dialing, eight entries

• Configurable dial/numbering plan support

• Intercom*

• Group paging

• Network Address Translation (NAT) Traversal, including Serial Tunnel (STUN) support

• DNS SRV and multiple A records for proxy lookup and proxy redundancy

• Syslog, debug, report generation, and event logging

• Support for highly secure encrypted voice communications

• Built-in web server for administration and configuration, with multiple security levels

• Automated remote provisioning, multiple methods; up to 256 bit encryption (HTTP, HTTPS, Trivial File Transfer Protocol [TFTP])

• Option to require administrator password to reset unit to factory defaults

Hardware Features

• Voicemail message waiting indicator light

• Voicemail message retrieval button

• Volume control

• Redial Button

• Flash Button

• Standard 12-button dialing pad

• High-quality handset

• One Ethernet WAN port 10/100BASE-T RJ-45

• 5 VDC universal (100-240V) switching power adaptor included
